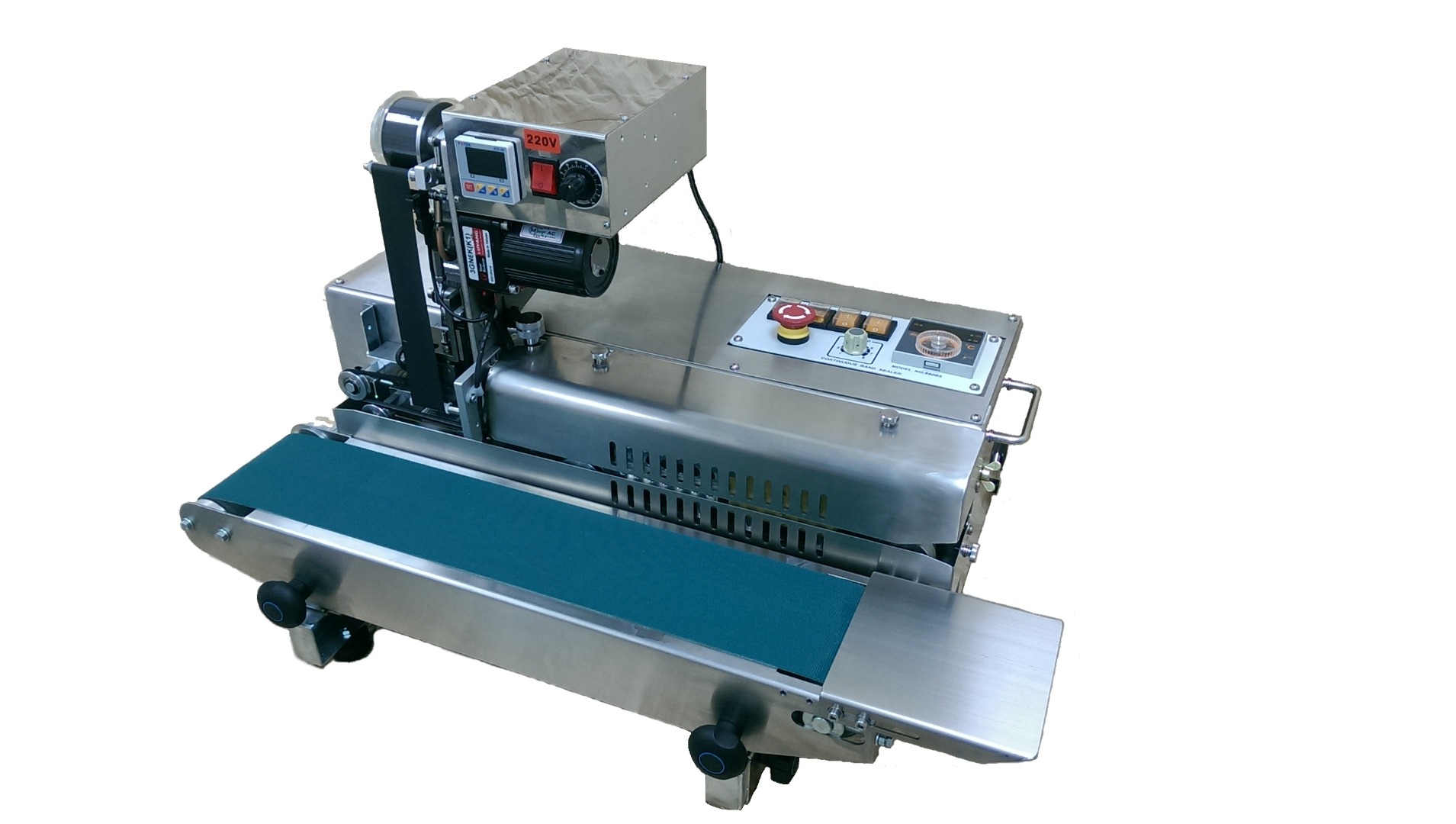

ME-870BS Stainless Continuous Band Sealer

Model No.	MEC-870BS Series	ME-871BS - (Horizontal type)	ME-872BS - (Vertical type)	ME-873BS - (Horizontal type + stand)
Power	550W	550W	550W	550W
Sealing speed	0~10 m/min	0~10 m/min	0~10 m/min	0~10 m/min
Sealing width	10mm	10mm	10mm	10mm
Depth from the sealing wire to the bag of edge	0~20mm	0~20mm	0~20mm	0~20mm
Height from the sealing center to the conveyor table	10~20mm	10~20mm	150~270mm
Temperature range	0~300℃	0~300℃	0~300℃	0~300℃
Single conveyor loading	≦ 1 kg	≦ 1 kg	≦ 1 kg	≦ 1 kg
Overall conveyor loading	≦ 3 kg	≦ 3 kg	≦ 3 kg	≦ 3 kg
Dimension (LWH) mm	730450320	730450320	730450320	730450320
Weight (kgs)	32 kgs	32 kgs	35 kgs	42 kgs
